Makes
Haitian

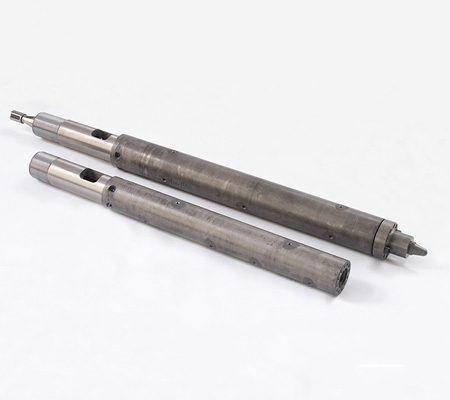

GEM Technic manufactures and supplies screws, barrels/cylinders, screw tips, endcaps, nozzles for Haitian injection molding machines, including HTF-X, HTF-W, Mars, Saturn series.
Haitian injection screw diameter and barrel bore size:
24mm, 26mm, 28mm, 30mm, 32mm, 34mm, 36mm, 40mm, 45mm, 48mm, 50mm, 55mm, 60mm, 65mm, 70mm, 75mm, 80mm, 84mm, 85mm, 90mm, 100mm, 110mm, 120mm, 130mm, 140mm, 150mm, 160mm, 170mm, 185mm, 200mm, 215mm, 240mm
Haitian free flow screw tip assemblies:
22mm Haitian screw tip assemblies, 30 Degree Nose Angle, M10X1.5 LH Thread, H13/HT
24mm Haitian screw tip assemblies, 30 Degree Nose Angle, M10X1.5 LH Thread, H13/HT
26mm Haitian screw tip assemblies, 30 Degree Nose Angle, M12X1.75 LH Thread, H13/HT
28mm Haitian screw tip assemblies, 30 Degree Nose Angle, M12X1.75 LH Thread, H13/HT
30mm Haitian screw tip assemblies, 30 Degree Nose Angle, M12X1.75 LH Thread, H13/HT
32mm Haitian screw tip assemblies, 30 Degree Nose Angle, M16X2 LH Thread, H13/HT
34mm Haitian screw tip assemblies, 30 Degree Nose Angle, M16X2 LH Thread, H13/HT
36mm Haitian screw tip assemblies, 30 Degree Nose Angle, M16X2 LH Thread, H13/HT
38mm Haitian screw tip assemblies, 30 Degree Nose Angle, M20X2.5 LH Thread, H13/HT
40mm Haitian screw tip assemblies, 30 Degree Nose Angle, M20X2.5 LH Thread, H13/HT
42mm Haitian screw tip assemblies, 30 Degree Nose Angle, M20X2.5 LH Thread, H13/HT
45mm Haitian screw tip assemblies, 30 Degree Nose Angle, M20X2.5 LH Thread, H13/HT
48mm Haitian screw tip assemblies, 30 Degree Nose Angle, M24X3 LH Thread, H13/HT
50mm Haitian screw tip assemblies, 30 Degree Nose Angle, M24X3 LH Thread, H13/HT
55mm Haitian screw tip assemblies, 30 Degree Nose Angle, M24X3 LH Thread, H13/HT
60mm Haitian screw tip assemblies, 30 Degree Nose Angle, M27X3 LH Thread, H13/HT
60mm Haitian screw tip assemblies, 60 Degree Nose Angle, M27X3 LH Thread, H13/HT
65mm Haitian screw tip assemblies, 60 Degree Nose Angle, M30X3.5 LH Thread, H13/HT
70mm Haitian screw tip assemblies, 60 Degree Nose Angle, M36X4 LH Thread, H13/HT
75mm Haitian screw tip assemblies, 60 Degree Nose Angle, M36X4 LH Thread, H13/HT
80mm Haitian screw tip assemblies, 60 Degree Nose Angle, M39X4 LH Thread, H13/HT
84mm Haitian screw tip assemblies, 60 Degree Nose Angle, M39X4 LH Thread, H13/HT
85mm Haitian screw tip assemblies, 60 Degree Nose Angle, M39X4 LH Thread, H13/HT
90mm Haitian screw tip assemblies, 60 Degree Nose Angle, T48X4 LH Thread, H13/HT
100mm Haitian screw tip assemblies, 60 Degree Nose Angle, T55X4 LH Thread, H13/HT
Haitian injection screw diameter and barrel bore size:
24mm, 26mm, 28mm, 30mm, 32mm, 34mm, 36mm, 40mm, 45mm, 48mm, 50mm, 55mm, 60mm, 65mm, 70mm, 75mm, 80mm, 84mm, 85mm, 90mm, 100mm, 110mm, 120mm, 130mm, 140mm, 150mm, 160mm, 170mm, 185mm, 200mm, 215mm, 240mm
Haitian free flow screw tip assemblies:
22mm Haitian screw tip assemblies, 30 Degree Nose Angle, M10X1.5 LH Thread, H13/HT
24mm Haitian screw tip assemblies, 30 Degree Nose Angle, M10X1.5 LH Thread, H13/HT
26mm Haitian screw tip assemblies, 30 Degree Nose Angle, M12X1.75 LH Thread, H13/HT
28mm Haitian screw tip assemblies, 30 Degree Nose Angle, M12X1.75 LH Thread, H13/HT
30mm Haitian screw tip assemblies, 30 Degree Nose Angle, M12X1.75 LH Thread, H13/HT
32mm Haitian screw tip assemblies, 30 Degree Nose Angle, M16X2 LH Thread, H13/HT
34mm Haitian screw tip assemblies, 30 Degree Nose Angle, M16X2 LH Thread, H13/HT
36mm Haitian screw tip assemblies, 30 Degree Nose Angle, M16X2 LH Thread, H13/HT
38mm Haitian screw tip assemblies, 30 Degree Nose Angle, M20X2.5 LH Thread, H13/HT
40mm Haitian screw tip assemblies, 30 Degree Nose Angle, M20X2.5 LH Thread, H13/HT
42mm Haitian screw tip assemblies, 30 Degree Nose Angle, M20X2.5 LH Thread, H13/HT
45mm Haitian screw tip assemblies, 30 Degree Nose Angle, M20X2.5 LH Thread, H13/HT
48mm Haitian screw tip assemblies, 30 Degree Nose Angle, M24X3 LH Thread, H13/HT
50mm Haitian screw tip assemblies, 30 Degree Nose Angle, M24X3 LH Thread, H13/HT
55mm Haitian screw tip assemblies, 30 Degree Nose Angle, M24X3 LH Thread, H13/HT
60mm Haitian screw tip assemblies, 30 Degree Nose Angle, M27X3 LH Thread, H13/HT
60mm Haitian screw tip assemblies, 60 Degree Nose Angle, M27X3 LH Thread, H13/HT
65mm Haitian screw tip assemblies, 60 Degree Nose Angle, M30X3.5 LH Thread, H13/HT
70mm Haitian screw tip assemblies, 60 Degree Nose Angle, M36X4 LH Thread, H13/HT
75mm Haitian screw tip assemblies, 60 Degree Nose Angle, M36X4 LH Thread, H13/HT
80mm Haitian screw tip assemblies, 60 Degree Nose Angle, M39X4 LH Thread, H13/HT
84mm Haitian screw tip assemblies, 60 Degree Nose Angle, M39X4 LH Thread, H13/HT
85mm Haitian screw tip assemblies, 60 Degree Nose Angle, M39X4 LH Thread, H13/HT
90mm Haitian screw tip assemblies, 60 Degree Nose Angle, T48X4 LH Thread, H13/HT
100mm Haitian screw tip assemblies, 60 Degree Nose Angle, T55X4 LH Thread, H13/HT
Haitian MARS series machine model:
Haitian MA600, Haitian MA900, Haitian MA1200, Haitian MA1600, Haitian MA2000, Haitian MA2500, Haitian MA2800, Haitian MA3200, Haitian MA3800, Haitian MA4700, Haitian MA5300, Haitian MA6000, Haitian MA7000, Haitian MA8000, Haitian MA9000, Haitian MA10000, Haitian MA12000, Haitian MA13000, Haitian MA14000, Haitian MA16000, Haitian MA18500, Haitian MA21000, Haitian MA24000
Haitian JU1600
Haitian old series:
Haitian НТF530Х,
Haitian MA600, Haitian MA900, Haitian MA1200, Haitian MA1600, Haitian MA2000, Haitian MA2500, Haitian MA2800, Haitian MA3200, Haitian MA3800, Haitian MA4700, Haitian MA5300, Haitian MA6000, Haitian MA7000, Haitian MA8000, Haitian MA9000, Haitian MA10000, Haitian MA12000, Haitian MA13000, Haitian MA14000, Haitian MA16000, Haitian MA18500, Haitian MA21000, Haitian MA24000
Haitian JU1600
Haitian old series:
Haitian НТF530Х,
